FUSINDA POWER TECHNOLOGY CO., LIMITED

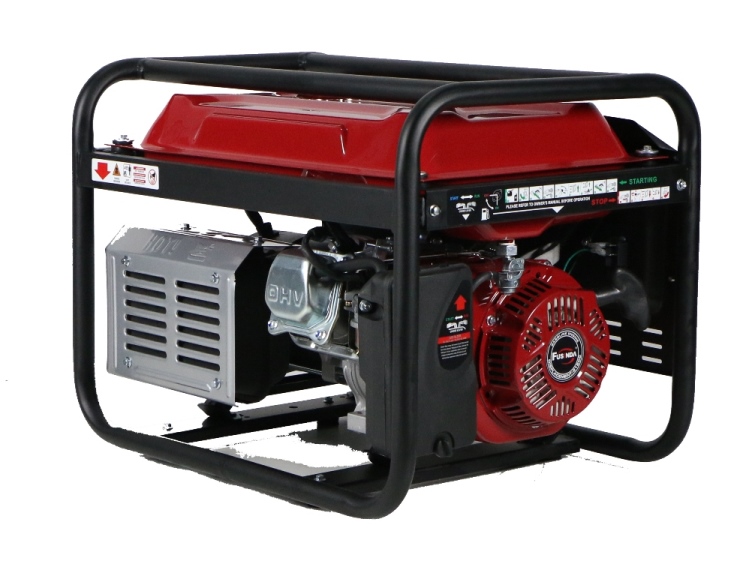

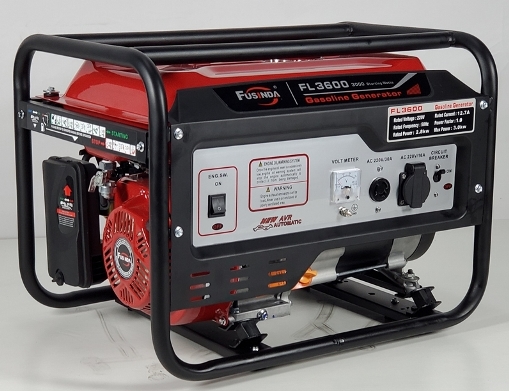

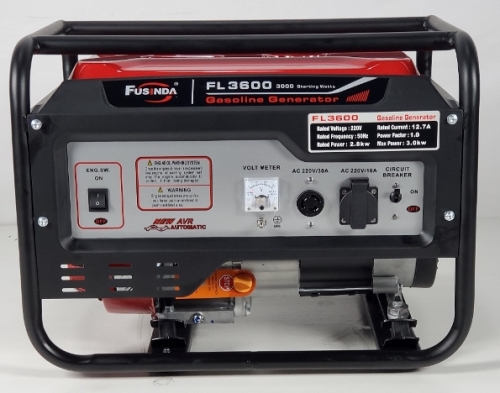

Fusinda 3kW Small Portable Generator/ Gasoline Generator FL3600

3kw Gasoline Engine Generator with 100% Copper Winding alternator

AC Single Phase 3kw gasoline petrol generator with Senci 100% copper alternator


Fusinda Generator Features:



(1) 2800watts, Max 3000 watts, 220/230/240V
(2) Power for emergency and home standby use
(3) Overload protection for safe running
(4) Compact structure and light weight
(5) Easy maintenance with brushless alternator electric ignition
(6) Long run time-up to 12 hrs
(7) AVR alternator provides stable voltage and current
(8) Emergency low oil warning
(9) Powerful commercial engine
(10) Electric start (Battery included) with Recoil back up


Why FUSINDA?

1.12 years of manufacturing experience in the field of general machineries
2. Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system
7. Fast and professional after sales service
8. One year warranty guaranteed

Specifications
1: High efficiency and low noise, low fuel consumption
2. Strong and stable power output, THD<5% Optional
2: Compact design, Strong structure, more endurable
3: Easy maintenance and longer working life
4: Super Competitive price, most reliable partner

NEW TYPE GASOLINE PETROL GENERATOR

FUSINDA FH TYPE GASOLINE GENERATOR WITH 100% COPPER ALTERNATOR
Model :		FL2500 ( E )	FL3000 ( E )	FL3600 ( E )	FL4500 ( E )	FL6500E	FL7500E	FL9500E	FL10000E	FL12000E
Engine		FD210F (7HP)	FD210F (7HP)	FD210F (7HP)	FD230 (7.5HP)	FD390 (13HP)	FD420 (14HP)	FD440F (15HP)	FD460 (16HP)	FD460 (16HP)
Engine type:		Air-cooled, 4-stroke,OHV, Single cylinder
Starting system		Recoil Start / Electric Start
AC Frequency/Hz:		50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Rated.AC output/kw:		2.0/2.2	2.5/2.8	2.8/3.0	3.3/3.5	5.0/5.5	6.0/6.5	7.0/7.5	7.5/8.0	8.5/9.0
Max.AC output/kw:		2.2/2.5	2.8/3.0	3.0/3.3	3.8/4.2	5.5/6.0	6.5/7.0	7.5/8.0	8.0/8.5	9.0/9.5
Voltage/V		220-240V
Voltage Regulate		AVR	AVR	AVR	AVR	AVR	AVR	AVR	AVR	AVR
Displacements (cc)		208	208	208	223	420	420	439	459	500
Fuel Tank Capacity/L:		15	15	15	15	25	25	25	25	25
Full load continuum running time (H)		16	15	15	14	12	12	10	10	8
1/2 load continuum running time (H)		22	20	20	19	17	17	15	15	14
Oil capacity/L		0.6	0.6	0.6	0.6	1.1	1.1	1.1	1.1	1.1
Dimensions(LxWxH)/mm		620X460X520	620X460X520	620X460X520	620X460X520	720X530X630	720X530X630	720X530X630	720X530X630	720X530X630
Net Weight/Gross Weight		45/48	47/50	48/51	50/53	84/88	88/94	92/96	96/100	105/110
Quantity Per Container (set)		20:188	20:188	20:188	20:188	20:105	20:105	20:105	20:105	20:105
		40:475	40:475	40:475	40:475	40:280	40:280	40:280	40:280	40:280

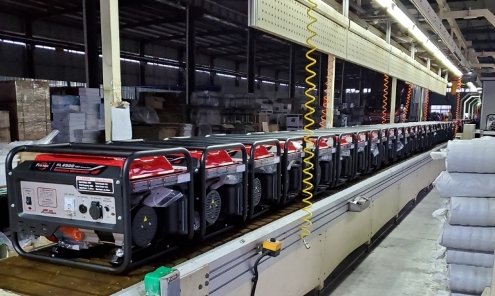

Clean and Tidy Workshop
​

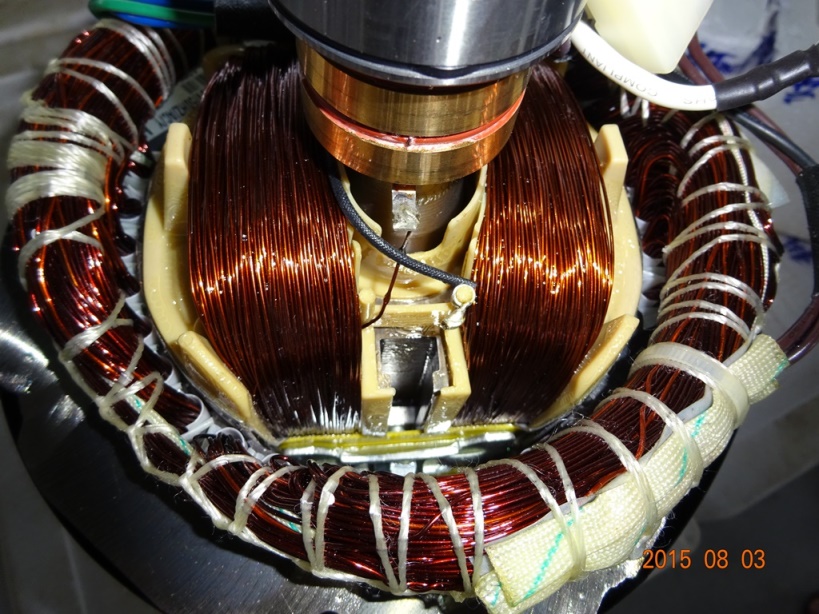

100% Copper Winding Alternator
