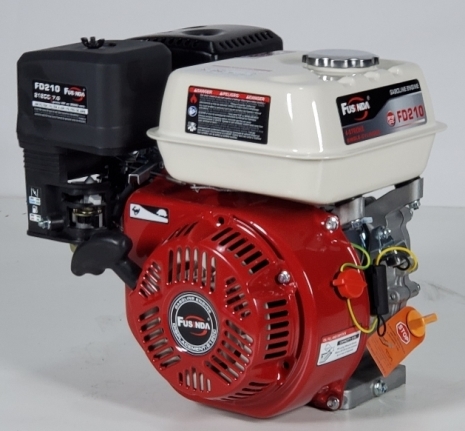

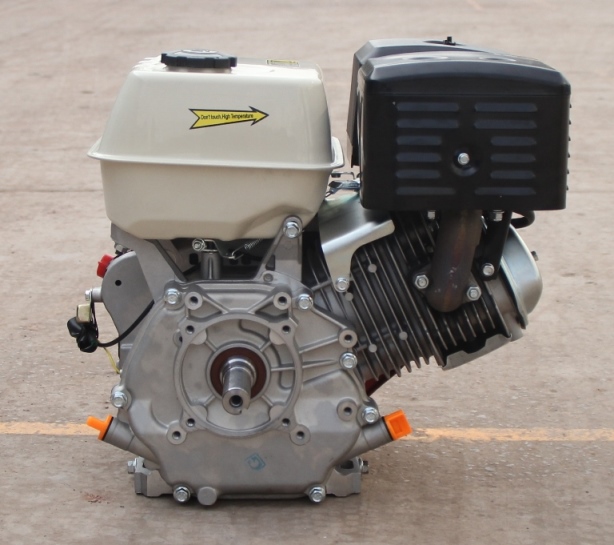

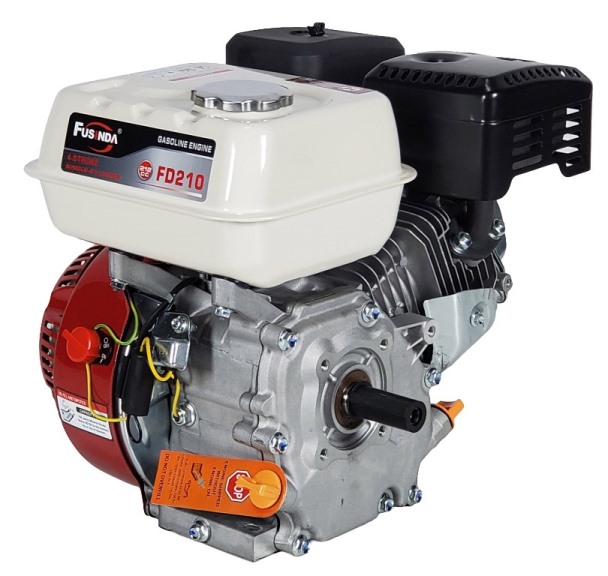

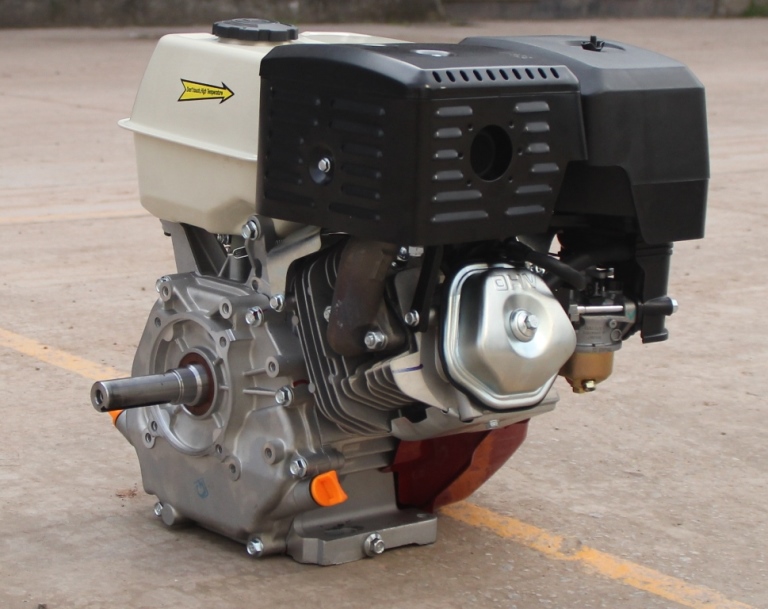

FUSINDA 7HP / 212cc Air-Cooled Honda Style Small Gasoline Engine

Product Description
Fusinda brand, Air Cooled, FD210 / 212cc, single cylinder gasoline engine

Features:
* Advance OHV, air cooled, 4 stroke engine, delivers non-flunctuating power for longer time
* Light and compact design
* Low fuel consumption
* Easy and fast starting and installing
* Lower noise and small vibration
* The valve designed for carbon deposition prevention, which can effectively prolong the lifespan of engine

* Integrated type of wind scooper, effectively reduce the heating, better prolong the engine's lifespan

* Optimum inner structural design of cylinder head valve, effectively lower spray volume of oil, less fuel consumption

* OHV design, lower temperature with running engine, more power output, more endurable, can save more fuel

* Cast Iron Sleeve, effective improved the performance of lubrication, as well as make the engine to better stand wear and tear, to prolong the engine's lifespan

* Low oil shut down system, prevent engine to run in low oil condition, better protect engine



Model Number	FD210		FD270	FD390	FD420	FD460
Engine Type	Single Cylinder, 4-stroke, Air Forced Cooling
Displacement(cc)	208	242	270	389	420	459
Bore x Stroke(mm)	70x54	73x58	77x58	88x64	90x66	92x69
Max Power(Hp/rpm)	7/3600	8/3600	9/3600	13/3600	16/3600	19/3600
Max. Torque(N.m/rpm)	13.5/2500	14.5/2500	16.5/2500	23/2500	26/2500	29/2500
Idle Speed (r/min)	1500±100
Compression Ratio	8.2:1	8.2:1	8.2:1	8.0:1	8.0:1	9.0:1
Fuel Consumption(g/kw.h)	≤395	≤374	≤374	≤374	≤374	≤374
Noise (@7M)	66	68	69	73	73	74
PTO Shaft Rotation	Anti-Clockwise (From PTO Side)
Ignition System	Transistorized Magneto
Starting System	Recoil Start / Electric Start
Lubrication System	Splash
Governor System	Centrifugal Mass Type
Oil Capacity (L)	0.6	1.1	1.1	1.1	1.1	1.2
Fuel Tank Capacity (L)	3.6	6	6	6.5	6.5	6.5
N.W/G.W (kg)	15/17	25/28	25/28	31/34	31/34	32/35
Dimension (mm)	400*370*380	490*420*470	490*420*470	490*420*490	490*420*490	490*420*490
20GP (Set)	522	305	305	305	305	305
40HQ (Set)	1281	660	660	660	660	660
