Products > Diesel Generator > > Fusinda 5kw Diesel Generator Set
Fusinda 5kw Diesel Generator Set Fusinda 5kw Diesel Generator Set Fusinda 5kw Diesel Generator Set Fusinda 5kw Diesel Generator Set
Product name : Fusinda 5kw Diesel Generator Set
Product No. : FD6500EC
Model Number : FD6500EC
Engine Type : Air-Cooled, 4-Stroke, Ohv, Single Cylinder, Gasoline Engine
Starting System : Electric Start
Trade Mark : Fusinda
Loading Port : Chongqing, China
Origin : Chongqing, China
H.S Code : 85021100
Package : wooden Box
←[Previous Product]
Online Inquiry         Email Us

  Details:

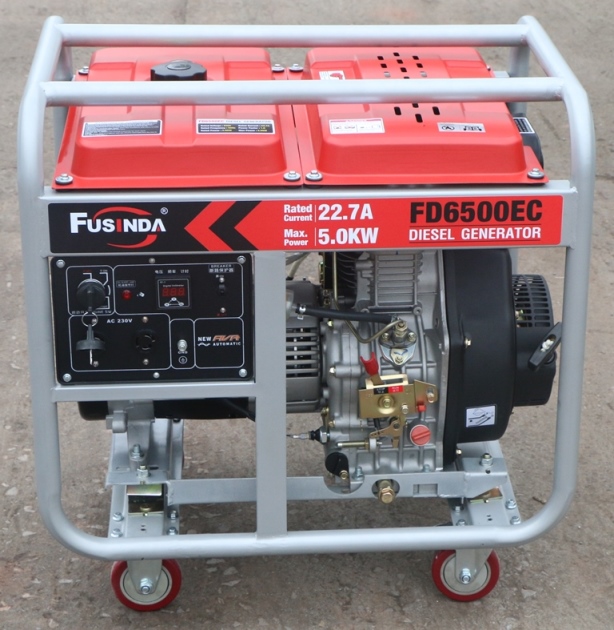

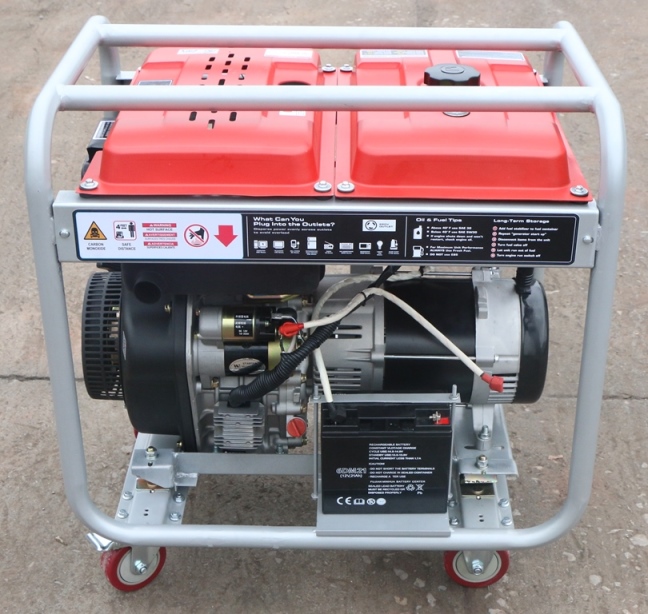

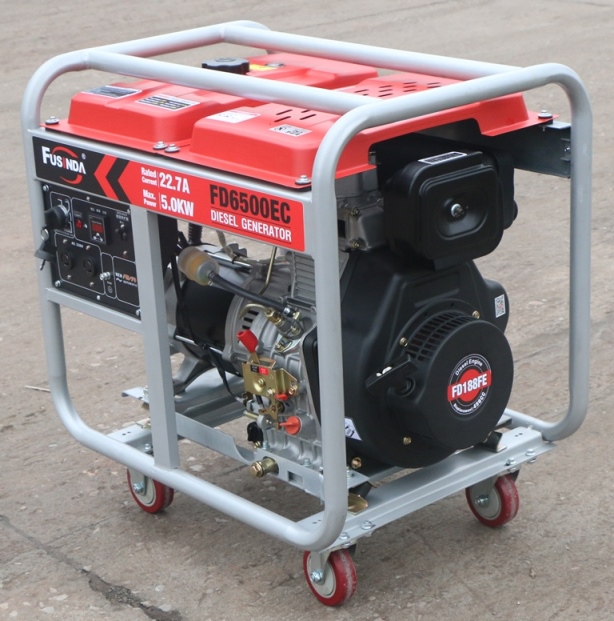

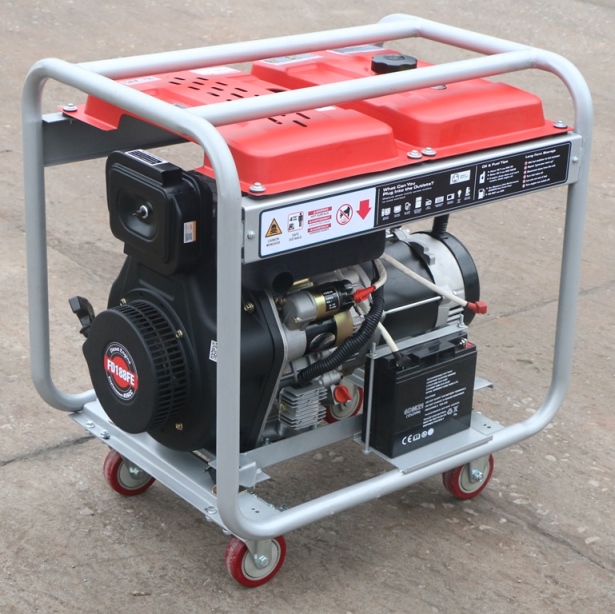

Fusinda 5kw Diesel Generator Set

Basic Info
  • Model NO.: FD6500EC
  • Installation Method: Portable
  • Cooling Method: Air Cooled
  • Speed: Speed
  • Usage: Common Units
  • Excitation Mode: AC Rotating Exciter
  • Transport Package: Wooden Box
  • Origin: China
  • Type: Self-Starting Diesel Generator
  • Stroke: Four Stroke
  • Output Type: AC Single Phase
  • Conditions of Use: Land Use
  • Landuse Type of Unit: Low Noise Automation Type
  • Trademark: FUSINDA
  • Specification: 770x525x660mm
  • HS Code: 85021100

Basic Info
Model NO.: FD6500EC
Trademark: FUSINDA
Specification: 5.0kw
Origin: china
HS Code: 85021100
Product Description
1. CE approved, powered by FUSINDA advanced air-cooled diesel engine.

2. Great appearance design with professinal control pannel.

3. Ideal for home emergency use or as standby power supply.

4. Large fuel tank, ensuring hours of continuous output.

5. Advanced direct fuel injection system.

6. Large muffler & air-cleaner, reducing exhaust and intake noise.

7. A variety of specially-designed control panels available for different markets.




Model FD6500EC FD8500EC FD10000EC
Rated frequency(Hz) 50/60 50/60 50/60
Rated voltage(V) 110/220/380 110/220/380 110/220/380
Rated output(Kw) 4.5/5.0 5.0/5.5 6.0/6.5
Max. output(Kw) 5.0/5.5 5.5/6.0 6.5/7.0
Voltage regulating system Brush self-excitation and constant voltage Brush self-excitation and constant voltage Brush self-excitation and constant voltage
Power factor 1.0/0.8 1.0/0.8 1.0/0.8
Noise(dB) <=85 <=85 <=85
Engine type Single cylinder 4 stroke air cooling Single cylinder 4 strocke air cooling Single cylinder 4 strocke air cooling
Engine model FD186FAE FD188FAE FD192FAE
Power output(Hp/rpm) 8.0/3000 9.0/3000 11.0/3000
Start system Electric start Electric start Electric start
Combustion system Direct injection Direct injection Direct injection
Bore * stroke(mm) 86*72 88*75 92*75
Displacement(cc) 418 456 499
Compression radio 19.0:1 19.0:1 19.0:1
Oil capacity(L) 1.65 1.65 1.65
Fuel tank capacity(L) 13 13 13
Fuel consumption(g/kg.h) <=275 <=275 <=275
continuous time(h) 7 6 5.5
Dimension(mm) 770*525*660 770*525*660 770*525*660
Net weight/Gross weight(kg) 100/105 102/107 106/111
20FT(set) 99 99 99
40HQ(set) 264 264 264
